Circle
Circle
In our daily routine, we come across many shapes that are round in shape, such as a wall clock, a wheel, sun moon, earth, coin, bangles, rings, etc. These all shapes are called a circle.
The circle can also be imagined as a single line segment that is bent in a circular shape.

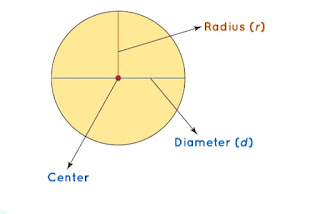

Circle Definition
- A circle is a collection of points in a plane from a given fixed point.
Center
- The fixed point is called the center of the circle.
Radius
- The fixed distance from the center is called the radius of a circle.
Chord:
- A line segment joining any two points on the circle is called a chord.
Diameter:
- A chord that passes through the center of the circle is called the diameter of a circle.
- Also diameter is the longest chord and can be expressed as 2r where r is the radius of a circle.
- There are infinite numbers of diameter in a circle.
Secant:
- A chord that intersects the circle in two points is called a secant.
Tangent:
- A line that touches a circle in one point is called tangent to the circle.
- And that point is called the point of contact.
Arc :
- A piece of circle between two points is called an arc.
Circumference:
- The length of the complete circle is called the circumference of a circle.
- It is also said to be the perimeter of the circle.
- The circumference of a circle = 2πr, where r is the radius of a circle.
Segment:
- The region between the chord and the arc is called the segment of the circle.
- The segment containing the minor arc is called the minor segment and the segment containing the major arc is called the major segment.
Sector:
The region between the arc at the two radii is called the sector.
Properties of Circle
- Circles with the same radii are said to be congruent.
- The longest chord of a circle is the diameter of a circle.
- The diameter of a circle is double the radius.
- The diameter divides the circle into two equal semicircles.
- The radius that is drawn perpendicular to the chord bisects the chord
- A circle can be inscribed in a square, triangle or a kite
Formulas For Circle
Diameter d :
The diameter of a circle is twice the radius of a circle.
d = 2r
Circumference:
C = πd = 2πr
Area:
Area of the circle is defined as the space occupied by the circle. The formula for area is given by
A =πr2
Example 1:
Find the Area and the Circumference of a circle whose radius is 7 cm. (Take the value of π = 22/7)
Solution-
Given radius r = 7 cm.
Area A = π r× r
= 22/7 × 7 x 7
Area = 154 Sq.cm
Circumference C = 2πr
= 2 x 22/7 x 7
Circumference = 44 cm
Example 2 :
If the diameter of a circle is 12cm. Then find its area.
Solution:
Given, diameter d = 12cm
So, radius r = d /2
= 12/2
= 6cm
Hence, area A = πr^2
A = π x (6)^2
= 3. 14 x 36
A = 113.04 cm2
